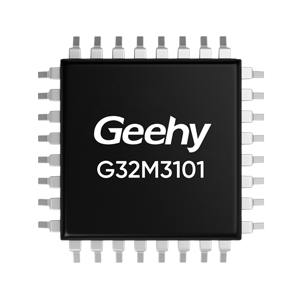

The G32M3101 Motor Control SoC features a 64MHz Arm® Cortex®-M0+ core, a 40V 3P+3N gate driver, and a 5V/60mA LDO to simplify system design. Its built-in DIV/MULT arithmetic unit speeds up algorithm execution, supporting both sensor-based and sensorless FOC control. With versatile peripherals, it ensures precise motor control, signal processing, and communication, making it suitable for fans, water pumps, air purifiers, pedestal fans, and personal care devices.

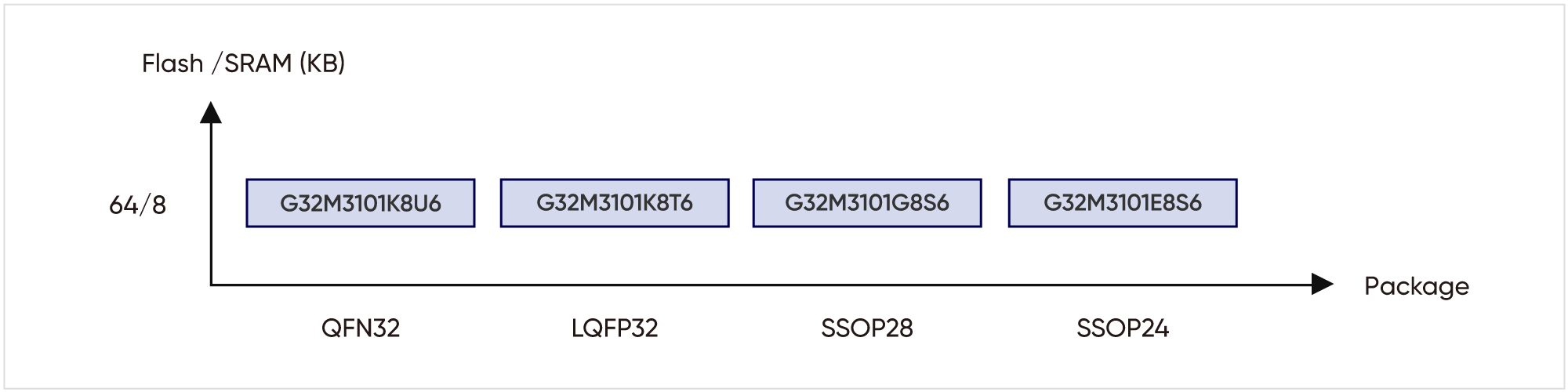

Packaging Roadmap

Performance

System

Arm® Cortex®-M0+
Operating frequency: 64 MHz
DMA: 1, 3 channels

Memory

Flash: 64 KB
SRAM: 8 KB

Power Management

Operating voltage: 2.7V~5.5V
Gate driver supply: 5V~36V
Supports POR/PDR
Supports PVD

Timers

16-bit advanced timer: 1
32-bit general-purpose timer: 1
16-bit basic timer: 1
16-bit low-power timer: 1
Watchdog timer: 2
24-bit SysTick timer: 1

Analog Peripherals

12-bit ADC: 1 (8 channels)
Analog comparator: 2
Rail-to-rail operational amplifier: 2

I/Os

Up to 24 I/Os
5 V tolerant inputs
All I/Os are mapped to external interrupt vectors

Communication Interfaces

UART: 2 (LIN support)
SPI: 1

Arithmetic Units

CRC/DIV/MULT

High Integration

Built-in 3P+3N 40V Gate Driver
Built-in 5V/60mA LDO

Package

QFN32
LQFP32
SSOP24/SSOP28

Selection Tools

All Products

Filter

Clear the Filter

0 results total entry

Download Spreadsheet

Compare	Part No.	Core	Frequency(MHz)	FLASH(KB)	SRAM(KB)	I/Os	Voltage(V)	GPTMR(16bit)	GPTMR(32bit)	Advanced TMR(16bit)	Basic TMR	Systick(24bit)	IWDT	WWDT	RTC	ADC 12-bit Cell	ADC 12-bit Channels	DAC 12-bit Cell	DAC 12-bit Channels	Analog Comparator	Operational Amplifier	TSC (Channels)	SPI	I2S	I2C	USART	CAN	SDIO	USB Device	CEC	Integrated Gate Driver	Driver Voltage(V)	LDO(V)	Floating Gate Voltage(V)	Package	DIV	CORDIC	T-sensor

Block Diagram

Documentation

Title	Type	Version	Format	Size	Update Date
G32M3101x8 Datasheet	Data Sheet	V1.0	pdf	1.58 MB	January 13, 2026
G32M3101x8 User Manual	User Manual	V1.0	pdf	4.44 MB	January 05, 2026

Design Resources

Hardware Development Tools

Title	Type	Product

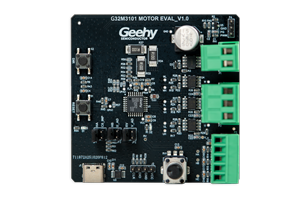

G32M3101 Motor Control EVAL Board	Development Board

Software Development Tools

Title	Type	Version	Format	Size	Update Date
GeehyProg SetUp	Programmer/DFU/ISP	V1.0.6	msi	10.58 MB	January 20, 2026
G32M3101_DAL_SDK	SDK	V1.0.3	zip	21.8 MB	April 08, 2026
G32M3101_hall_FOC	Demo	-	pdf	160.36 KB	January 06, 2026
G32M3101_Sensorless_FOC	Demo	-	pdf	160.36 KB	January 06, 2026
G32M3101_ BLDC	Demo	-	pdf	160.36 KB	January 06, 2026
G32M3101_DFP Pack	Pack	V1.0.3	pack	599.86 KB	April 08, 2026
